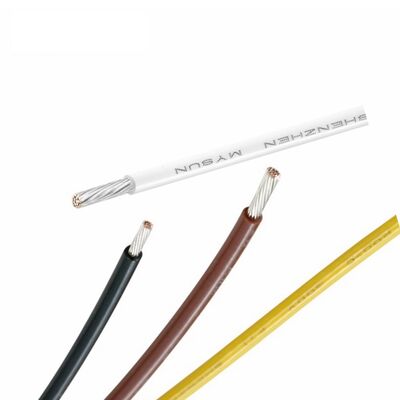

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
  • UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
원래 장소 중국 광둥
브랜드 이름 MYSUN
모델 번호 UL8298
최소 주문 수량 3050

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
도체 재료 통조림 구리 지름 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG
단열재 PFA 정격전압 450V, 750V
도체 유형 단단한 모양 둥근
온도 등급 250 ℃ 도체 저항 59.78Ω/KM(0.34mm2), 40.1Ω/KM(0.50mm2), 26.7Ω/KM(0.75mm2), 20Ω/KM(1.00mm2), 14.35Ω/KM(1.25mm2), 13.7Ω
단위 길이 305/1000 m/ft 지휘자 구조 7/0.15(0.34mm2), 7/0.19(0.50mm2), 19/0.23(0.75mm2), 19/0.26(1.00mm2), 19/0.29(1.25mm2), 19/0.32(1.50
절연 두께 0.305mm(0.34-1.50mm2), 0.350mm(2.00-2.50mm2) 와이어 직경 1.36mm(0.34mm2), 1.56mm(0.50mm2), 1.78mm(0.75mm2), 1.91mm(1.00mm2), 2.16mm(1.25mm2), 2.31mm(1.50mm2)
도체 직경 0.75mm(0.34mm2), 0.95mm(0.50mm2), 1.17mm(0.75mm2), 1.31mm(1.00mm2), 1.46mm(1.25mm2), 1.61mm(1.50mm2) 전압 정격 450/750v
절연 유형 PFA
강조하다

Solid Conductor PFA Wire

,

Round Shape PFA Wire

,

Medical Equipment PFA Wire
메시지를 남겨주세요
제품 설명
UL8298 PFA Wire - High Temperature Sensor Wire
Premium PFA Wire Supplier for Fortune 500 Companies
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 0 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 1
Technical Specifications
UL8298 UL1330 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit Length (M)(Ft)
Size (mm²) Construction (No.mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
0.34 7/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 7/0.19 0.95 0.305 1.56 40.1 305/1000
0.75 19/0.23 1.17 0.305 1.78 26.7 305/1000
1.00 19/0.26 1.31 0.305 1.91 20 305/1000
1.25 19/0.29 1.46 0.305 2.16 14.35 305/1000
1.50 19/0.32 1.61 0.305 2.31 13.7 305/1000
2.00 19/0.37 1.85 0.350 2.55 8.78 305/1000
2.50 19/0.41 2.06 0.350 2.76 7.16 305/1000
Click Contact us Get the Best Quote
Company Profile
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 2 UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 3
Our Product Range
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 4
Applications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 5
Global Clients
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 6
Industry Exhibitions
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 7
Certifications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications 8
Frequently Asked Questions
  • Who Are We? Professional manufacturer of high-temperature wires and cables with 26 years of experience, headquartered in Shenzhen with production bases in Dongguan and Jingzhou.
  • What We Provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why Choose Us: Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • Services: Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
