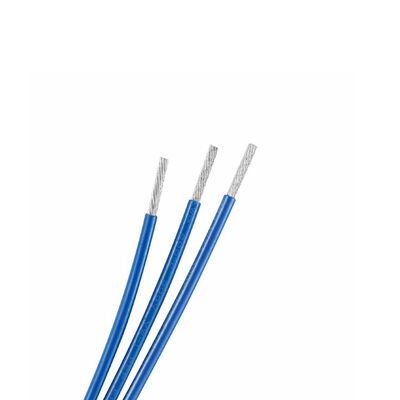

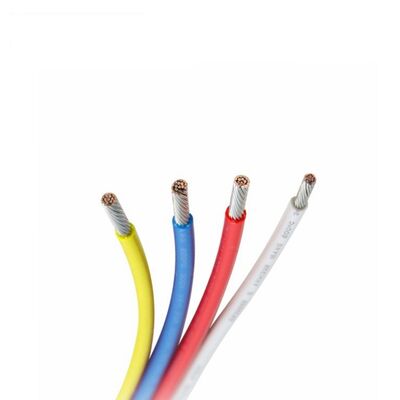

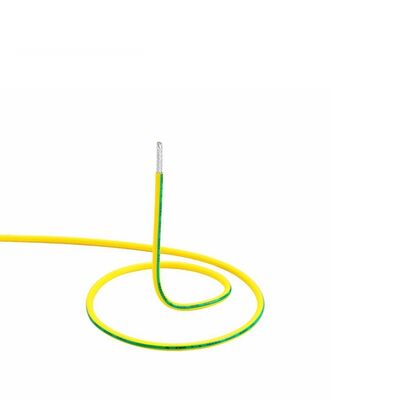

High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment

  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
원래 장소 중국 광둥
브랜드 이름 MYSUN
모델 번호 CQC1111.31-2020/GB/T38296-2019
최소 주문 수량 3050

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
도체 재료 통조림 구리 지름 0.051mm2 ~ 16.00mm2
단열재 FEP 정격전압 300 v
도체 유형 단단한 모양 둥근
온도 등급 150 ° C 유형 절연
단위 길이 305/1000 m/ft 최대 도체 저항 381Ω/KM ~ 1.17Ω/KM
공칭 두께 0.230mm~0.510mm 절연 직경 0.80mm~6.65mm
건설 7/0.10 ~ 133/0.393 전압 300V
색상 모든 컬러
강조하다

High Temperature FEP Wire

,

Tinned Nickel Plated Copper FEP Wire

,

CQC1111.31-2020/GB/T38296-2019 Standard FEP Wire
메시지를 남겨주세요
제품 설명
FEP Wire 300V 150°C Tinned Nickel Plated Copper High Temperature E-200/TX/FEP Wire for UAV Motor Generator
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 0 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 1
Specification
CQC E-150/TX/FEP Wire UL1330 Max.Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 100/328
2.50 19/0.41 2.08 0.380 2.90 7.47 100/328
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Click Contact us Get the Best Quote
Company Profile
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 2 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 3 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 4 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 5
Our Products
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 6 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 7
Application
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 8 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 9
Our Overseas Clients
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 10 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 11
Exhibition
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 12 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 13
Certifications
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 14 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 15
FAQ
1. Who Are We?
We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China.
2. What Can We Provide?
We Can Provide High-temperature Wires And Cables, Silicone Tubing - Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses.
3. Why Choose Us?
A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service.
4. What Certifications Do We Have?
We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
