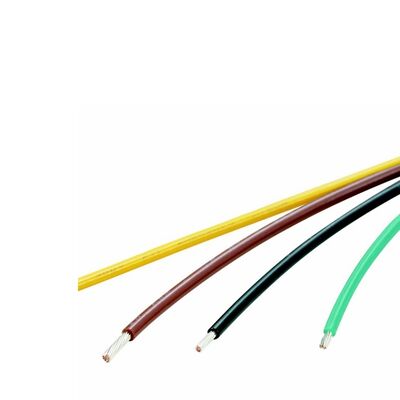

Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating

  • Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating
  • Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating
  • Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating
  • Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating
  • Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating
원래 장소 중국 광둥
브랜드 이름 MYSUN
모델 번호 CQC20011252316
최소 주문 수량 3050

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
도체 재료 통조림 구리 지름 0.051mm2 ~ 16.00mm2
단열재 FEP 정격전압 600V
도체 유형 단단한 모양 둥근
온도 등급 150℃, 200℃ 최대 도체 저항 381Ω/KM ~ 1.17Ω/KM
단위 길이 305/1000M/FT ~ 100/328M/FT 공칭 두께 0.510mm~0.760mm
절연 직경 1.32mm~7.20mm 건설 7/0.10 ~ 133/0.393
도체 직경 0.30mm~5.60mm 전압 정격 600V
절연 유형 FEP
강조하다

Nickel Plated Copper FEP Wire

,

High Temperature FEP Wire

,

Robot Industrial Power FEP Wire
메시지를 남겨주세요
제품 설명
Ez-200/TX/FEP Wire Red 600V 150°C Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power
Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 0 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 0
Specification
CQC V048486 E-200/TX/FEP Wire 600V 200°C UL1330 Conductor Insulation Max. Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.510 1.32 381, 610/2000
0.08 7/0.127 0.38 0.510 1.40 239, 610/2000
0.13 7/0.16 0.48 0.510 1.50 150, 305/1000
0.21 19/0.12 0.60 0.510 1.62 94.2, 305/1000
0.32 19/0.15 0.78 0.510 1.80 59.4, 305/1000
0.40 19/0.17 0.85 0.510 1.90 46.6, 305/1000
0.52 19/0.19 0.96 0.510 2.00 37.4, 305/1000
0.75 19/0.225 1.12 0.510 2.15 24.8, 305/1000
0.82 19/0.235 1.17 0.510 2.20 23.5, 305/1000
1.00 19/0.26 1.35 0.510 2.40 18.7, 305/1000
1.31 19/0.30 1.52 0.510 2.60 14.7, 305/1000
1.50 19/0.32 1.60 0.510 2.85 12.5, 305/1000
2.08 19/0.375 1.89 0.510 2.95 9.22, 305/1000
2.50 19/0.41 2.08 0.510 3.10 7.47, 305/1000
3.31 19/0.475 2.39 0.510 3.45 5.75, 100/328
4.00 19/0.52 2.70 0.510 4.30 4.68, 100/328
5.26 19/0.60 3.00 0.760 4.60 3.62, 100/328
6.00 19/0.64 3.25 0.760 4.80 3.12, 100/328
8.37 68/0.40 3.90 0.760 5.50 2.23, 100/328
10.00 37/0.59 4.30 0.760 5.90 1.87, 100/328
13.30 133/0.36 5.20 0.760 6.80 1.41, 100/328
16.00 133/0.393 5.60 0.760 7.20 1.17, 100/328
Click Contact us Get the Best Quote
Company Profile
Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 2 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 2 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 4 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 4
Our Products
Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 6 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 6
Application
Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 8 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 8
Our Overseas Clients
Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 10 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 10
Exhibition
Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 12 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 12
Certifications
Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 14 Nickel Plated Copper High Temperature FEP Wire for Robot Industrial Power with 600V Rating 14
FAQ
1. Who Are We?

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.

2. What Can We Provide?

We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.

3. Why Choose Us?
  • Free Sample
  • Competitive Price
  • High Quality Standard
  • Customized Service
4. What Certifications Do We Have?

We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.

5. What Services Can We Provide?

Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
