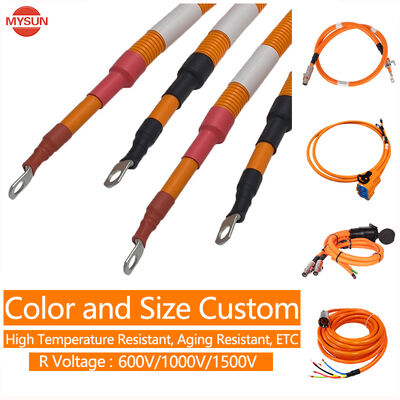

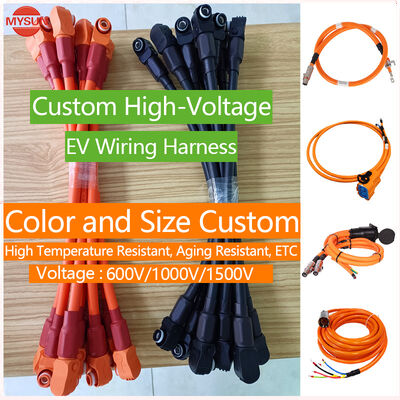

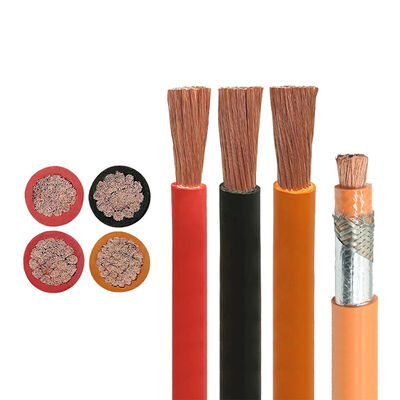

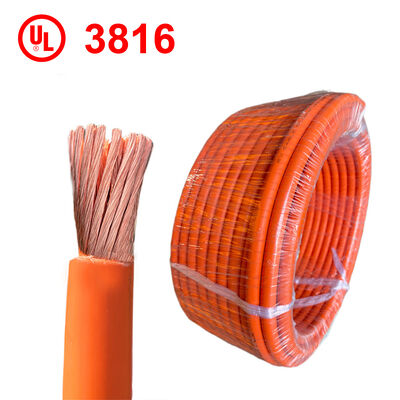

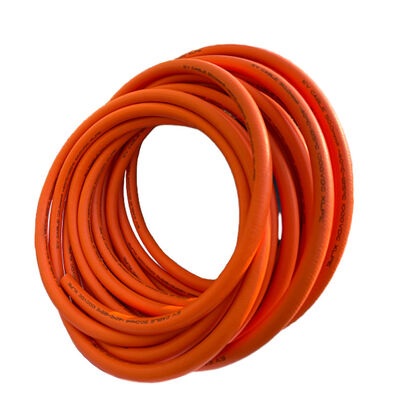

UL3916 XLPE Cable 3000V 150C Tinned Copper High Voltage Wire for EV & High Voltage Systems
제품 상세 정보
| 도체 재료 | 주석 도금된 구리 | 지름 | 4/0AWG, 3/0AWG, 2/0AWG, 50mm2, 75mm2, 90mm2, 120mm2, 1/AWG, 2AWG, 4AWG, 3AWG, 5AWG, 6AWG, 8AWG |
|---|---|---|---|
| 단열재 | XLPE | 정격전압 | 3000V |
| 도체 유형 | 좌초 | 모양 | 둥근 |
| 온도 등급 | 150C | 최대 온도 | 155℃ |
| 공칭 두께 | 0.60mm, 0.78mm, 1.15mm, 1.53mm, 2.10mm | 최대 도체 저항 | 381Ω/KM, 239Ω/KM, 150Ω/KM, 94.2Ω/KM, 59.4Ω/KM, 36.7Ω/KM, 23.2Ω/KM, 14.6Ω/KM, 8.96Ω/KM, 5.64Ω/KM, 3.5 |
| 단위 길이 | 610/2000M | 지휘자 구조 | 7/0.10, 7/0.127, 7/0.16, 7/0.2, 17/0.16, 21/0.18, 16/0.254, 26/0.254, 41/0.254, 65/0.254, 105/0.254, |
| 절연 직경 | 1.50mm, 1.58mm, 1.70mm, 1.80mm, 2.32mm, 2.50mm, 2.75mm, 3.06mm, 3.45mm, 3.93mm, 4.58mm, 4.92mm, 6.05 | MOQ | 1000M |
| 강조하다 | 3000V XLPE Cable,150C High Voltage Wire,Tinned Copper Battery Cable |
||
제품 설명
UL3916 XLPE Cable 3000V 150°C Tinned Copper High Voltage Wire
Supplies Fortune 500, Top New Energy Cable Supplier In China
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M/FT) |
|---|---|---|---|---|---|---|
| 30 | 7/0.10 | 0.30 | 0.60 | 1.50 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.60 | 1.58 | 239 | |
| 26 | 7/0.16 | 0.50 | 0.60 | 1.70 | 150 | |
| 24 | 7/0.2 | 0.60 | 0.60 | 1.80 | 94.2 | |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 59.4 | |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 36.7 | |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 23.2 | |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 14.6 | |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.96 | |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.64 | 100/328 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.55 | |
| 9 | 131/0.254 | 3.36 | 0.78 | 4.92 | 2.813 | |
| 8 | 166/0.254 | 3.75 | 1.15 | 6.05 | 2.23 | |
| 7 | 209/0.254 | 4.21 | 1.15 | 6.51 | 1.768 | |
| 6 | 263/0.254 | 4.79 | 1.53 | 7.85 | 1.403 | |
| 4 | 169/0.40 | 6.02 | 1.53 | 9.08 | 0.882 | |
| 2 | 268/0.40 | 7.60 | 1.53 | 10.66 | 0.5548 | |
| 1/0 | 426/0.40 | 10.8 | 2.10 | 15.00 | 0.3487 | |
| 2/0 | 537/0.40 | 12.2 | 2.10 | 16.40 | 0.2766 | |
| 3/0 | 677/0.40 | 13.7 | 2.10 | 17.90 | 0.2194 | |
| 4/0 | 547/0.40 | 15.42 | 2.10 | 19.60 | 0.1722 |
Contact us for a competitive quote
Our Products
Application
Company Profile
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08:00). We have public holiday during May 1-3, Oct 1-7 and Chinese New Year holiday. Please email us during our holiday if you have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. Buyer should bear all the shipping costs.
What is your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
