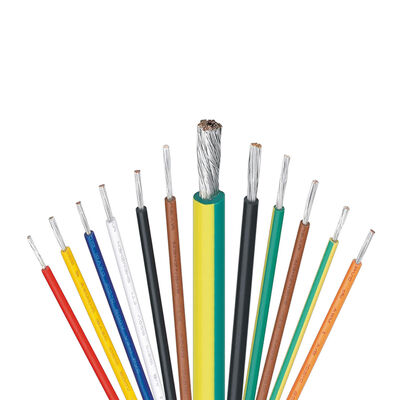

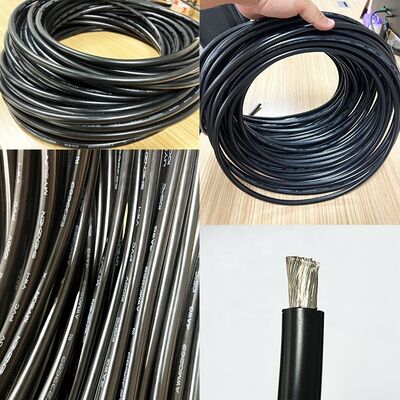

UL1032 Certified Battery Cable with 1000V Rated Voltage and 90C Working Temperature for New Energy Applications
제품 상세 정보
| 도체 재료 | 구리 | 단열재 | PVC |
|---|---|---|---|
| 정격전압 | 1000VAC | 작동 온도 | 90C |
| 배선 칫수 | 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 6AWG, 8AWG, 10AWG, 7AWG, 9AWG, 12AWG, 14AWG, 16AWG, 18AW | 지휘자 구조 | 7/0.127 ~ 105/0.254 |
| 도체 직경 | 0.38mm ~ 3.02mm | 절연체 두께 | 0.78mm |
| 절연 직경 | 1.94mm~4.91mm | 재킷 두께 | 0.13-1.0mm |
| 최대 도체 저항 | 239Ω/KM ~ 2.813Ω/KM | 단위 길이 | 305M ~ 1220M |
| 두께를 덮습니다 | 0.78mm | 덮는 직경 | 2.06mm~4.58mm |
| 유형 | 고전압 | ||
| 강조하다 | 1000V Rated Voltage Battery Cable,90C Working Temperature High Voltage Cable,UL1032 Certified New Energy Cable |
||
제품 설명

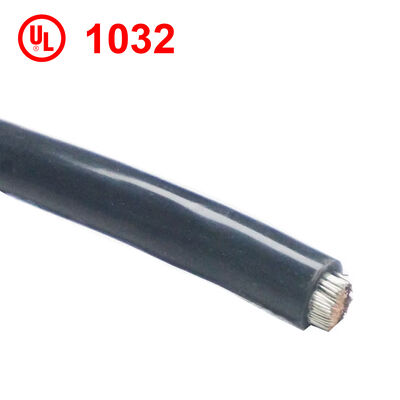

UL1032 PVC Wire - 1000V 90°C High Voltage New Energy Cable
Supplies Fortune 500 Companies - Top New Energy Cable Supplier in China
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Thickness (mm) | Thickness (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|---|---|---|---|---|
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 0.13-1.0 | 0.78 | 239 | 1220/4000 |
| 26 | 7/0.16 | 0.50 | 0.78 | 2.06 | 0.13-1.0 | 0.78 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 0.78 | 2.16 | 0.13-1.0 | 0.78 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 0.13-1.0 | 0.78 | 59.4 | 610/2000 |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 0.13-1.0 | 0.78 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 0.13-1.0 | 0.78 | 23.2 | 610/2000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 0.13-1.0 | 0.78 | 14.6 | 610/2000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 0.13-1.0 | 0.78 | 8.96 | 610/2000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 0.13-1.0 | 0.78 | 5.64 | 610/2000 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 0.13-1.0 | 0.78 | 3.55 | 610/2000 |
| 9 | 37/0.475 | 3.35 | 0.78 | 4.91 | 0.13-1.0 | 0.78 | 2.813 | 610/2000 |
Contact Us to Get the Most Cost-effective Quote
Our Products
Application
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
