UL3530 Battery Cable 200C High Temperature 600V Rated Voltage Super Soft Silicone Wire for Energy Storage System
제품 상세 정보
| 도체 재료 | 주석 도금 구리선 | 지름 | 1AWG, 2AWG, 4AWG, 6AWG, 10AWG, 8AWG, 12AWG, 14AWG, 16AWG, 18AWG, 0AWG, 1/0AWG, 2/0AWG, 3/0AWG, 4/0AW |
|---|---|---|---|
| 단열재 | 실리콘 | 정격전압 | 600V |
| 도체 유형 | 좌초 | 모양 | 둥근 |
| 온도 등급 | 200c | 유형 | 절연 |
| 지휘자 | 주석 도금 구리 코어 | 격리 | 실리콘 절연 케이블 |
| 재료 | 구리 | 재킷 | 실리콘 |
| 색상 | 선택 과목 | 기준 | UL758 |
| 공칭 두께 | 0.69mm, 1.02mm, 1.15mm, 1.37mm, 1.83mm | ||
| 강조하다 | 200C High Temperature Battery Cable,600V Rated Voltage Silicone Wire,Super Soft Silicone High Temperature Cable |
||
제품 설명
Seeking Country Agents for a Win-Win Partnership
Product Overview

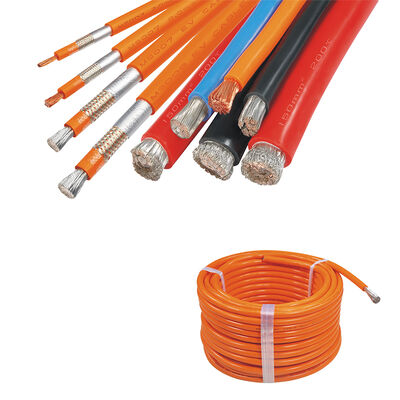

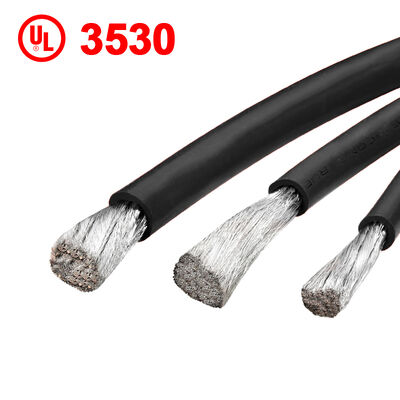

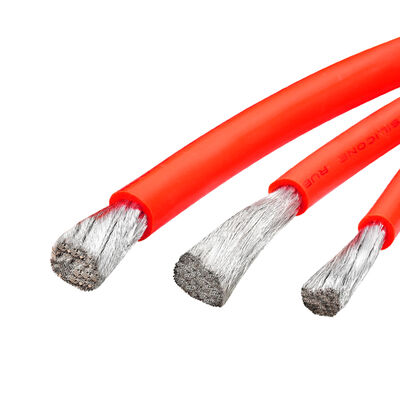

UL3530 Battery Cable rated for 200°C and 600V, available in 25mm, 35mm, 50mm, and 70mm² sizes. This high-temperature super soft silicone cable is specifically designed for energy storage systems.
UL3512 Super Soft Silicone Wire Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|
| 22 | 65/0.08 | 0.48 | 0.69 | 2.40±0.1 |
| 20 | 104/0.08 | 0.60 | 0.69 | 2.55±0.1 |
| 18 | 164/0.08 | 0.78 | 0.69 | 2.80±0.1 |
| 16 | 261/0.08 | 1.17 | 0.69 | 3.10±0.1 |
| 14 | 415/0.08 | 1.47 | 0.69 | 3.70±0.1 |
| 12 | 660/0.08 | 2.10 | 0.69 | 4.30±0.1 |
| 10 | 1050/0.08 | 2.70 | 1.02 | 5.40±0.2 |
| 9 | 1320/0.08 | 3.4±0.30 | 1.15 | 6.10±0.3 |
| 8 | 1650/0.08 | 4.0±0.30 | 1.37 | 7.00±0.3 |
| 7 | 2100/0.08 | 4.80±0.3 | 1.37 | 7.90±0.3 |
| 6 | 2648/0.08 | 5.30±0.30 | 1.37 | 8.30±0.4 |
| 5 | 3338/0.08 | 6.10±0.4 | 1.37 | 9.20±0.4 |
| 4 | 4210/0.08 | 6.80±0.5 | 1.37 | 9.90±0.4 |
| 3 | 5309/0.08 | 7.70±0.5 | 1.37 | 10.9±0.5 |
| 2 | 6692/0.08 | 8.70±0.5 | 1.37 | 11.8±0.5 |
| 1 | 8842/0.08 | 9.70±0.5 | 1.83 | 14.0±0.6 |
| 1/0 | 10647/0.08 | 11±0.5 | 1.83 | 15.0±0.6 |
| 2/0 | 13422/0.08 | 12±0.5 | 1.83 | 16.3±0.7 |
| 3/0 | 16921/0.08 | 14.5±0.5 | 1.83 | 18.5±0.8 |
| 4/0 | 21338/0.08 | 15.5±05 | 1.83 | 19.5±1.0 |
Our Products
Applications
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions

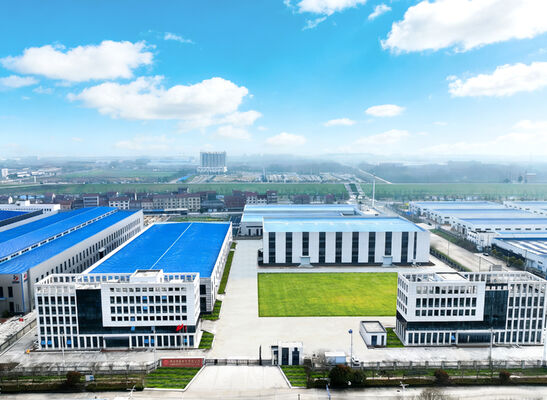

- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
