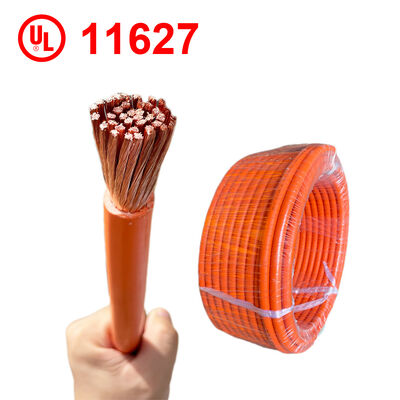

UL11627 New Energy Battery Cable with 2000V Rated Voltage 105C Working Temperature and Copper Conductor
제품 상세 정보
| 도체 재료 | 구리 | 단열재 | PVC |
|---|---|---|---|
| 정격전압 | 2000V | 크기 범위 | 4/0AWG, 3/0AWG, 2/0AWG, 1/0AWG, 2AWG, 4AWG, 6AWG, 8AWG, 3AWG, 5AWG |
| 작동 온도 | 105C | 도체 직경 | 0.38mm~3.35mm |
| 절연체 두께 | 0.78mm | 두께를 덮습니다 | 0.13-1.0mm |
| 최대 도체 저항 | 239Ω/KM ~ 2.813Ω/KM | 단위 길이 | 305M ~ 1220M |
| 재킷 소재 | PVC | 지휘자 구조 | 7/0.127 ~ 105/0.254 |
| 공칭 직경 | 1.94mm~4.91mm | 케이블 유형 | 고전압 |
| Ul 표준 | UL11627 | ||
| 강조하다 | 2000V Rated Voltage Battery Cable,105C Working Temperature High Voltage Cable,Copper Conductor New Energy Cable |
||
제품 설명

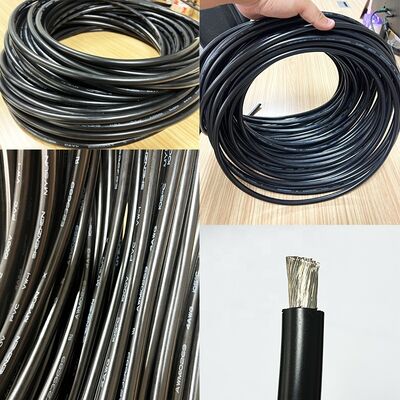

UL11627 New Energy Cable 2000V 105°C High Voltage PVC Wire
Supplies Fortune 500, Top New Energy Cable Supplier In China
Product Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Thickness (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M/Ft) |
|---|---|---|---|---|---|---|---|
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 0.13-1.0 | 239 | 1220/4000 |
| 26 | 7/0.16 | 0.50 | 0.78 | 2.06 | 0.13-1.0 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 0.78 | 2.16 | 0.13-1.0 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 0.13-1.0 | 59.4 | 610/2000 |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 0.13-1.0 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 0.13-1.0 | 23.2 | 610/2000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 0.13-1.0 | 14.6 | 610/2000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 0.13-1.0 | 8.96 | 610/2000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 0.13-1.0 | 5.64 | 610/2000 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 0.13-1.0 | 3.55 | 610/2000 |
| 9 | 37/0.475 | 3.35 | 0.78 | 4.91 | 0.13-1.0 | 2.813 | 610/2000 |
Contact Us to Get the Most Cost-effective Quote
Our Products
Application
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment currency: USD, EUR, CNY. Accepted payment type: T/T, L/C, PayPal, Western Union, Cash.
