2 AWG UL3512 Silicone Wire 200C High Temp Flexible Cable
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Temperature rating | 200C | Shape | ROUND |
|---|---|---|---|
| Diameter | 2 AWG | Conductor material | Tinned Copper wire |
| Conductor type | tinned copper | Insulation material | Silicone Rubber |
| Rated voltage | 600v | Conductor construction | 6692/0.08 |
| Conductor diameter | 8.70±0.5mm | Insulation thickness | 1.52mm |
| Overall diameter | 11.8±0.5mm | Wire gauge | 2 AWG |
| Material | Copper | Jacket material | Silicone rubber |
| Color options | Optional | ||
| 강조하다 | 2 AWG silicone wire,UL3512 high temp cable,flexible silicone insulated wire |
||
제품 설명

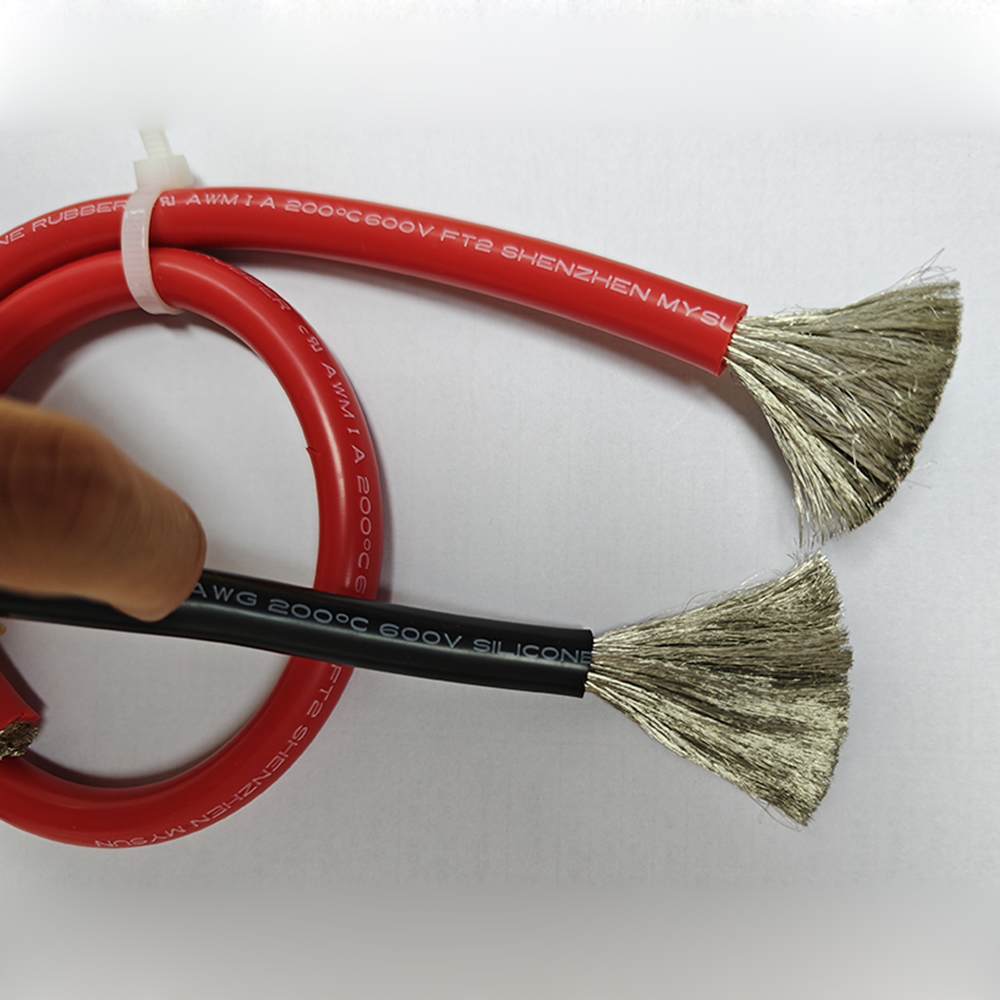

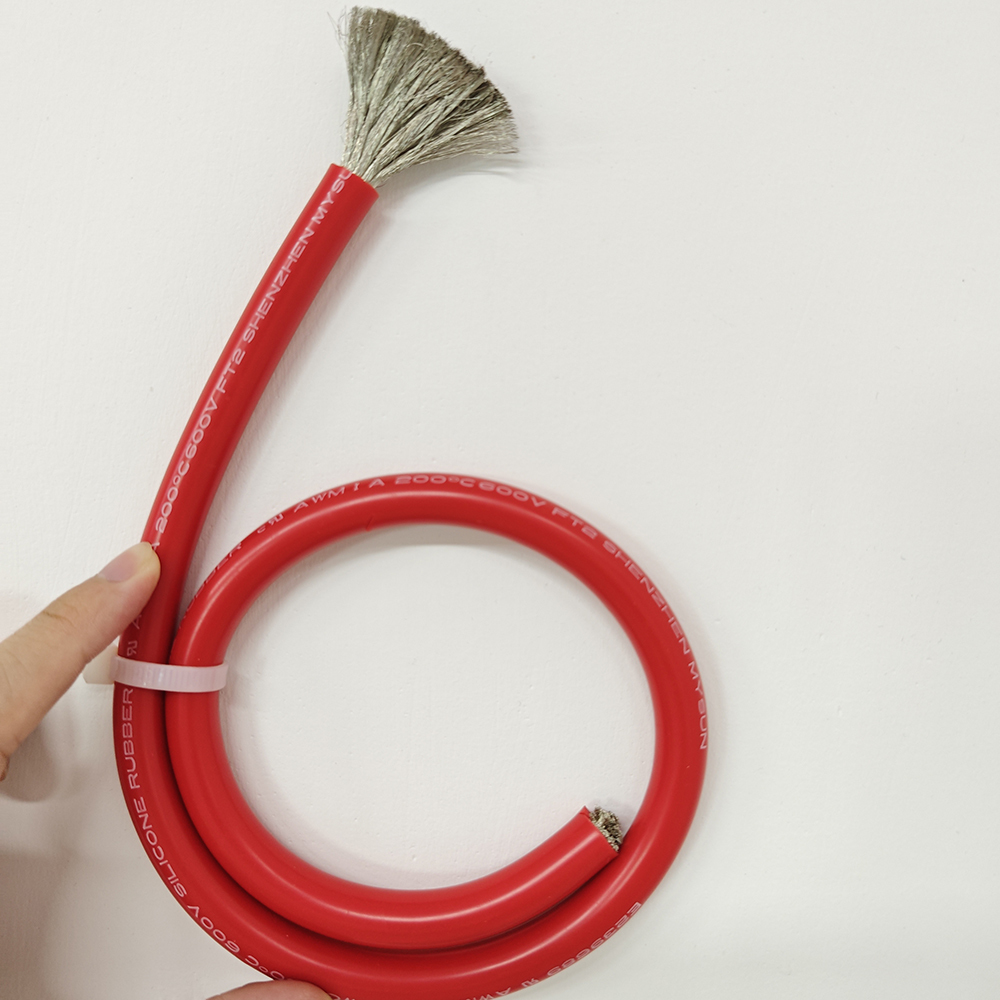

UL3512 2AWG Super Soft Silicone Wire 6692/0.08 Flexible High Temperature Hybrid Lithium Battery Cable
Product Specifications
| Attribute | Value |
|---|---|
| Temperature | 200°C |
| Shape | ROUND |
| Diameter | 2 AWG |
| Type | Insulated |
| Application | Home appliance, lighting, heater, motor & generator |
| Conductor Material | Tinned Copper wire |
| Insulation Material | Silicone Rubber |
| Rated voltage | 600V |
| Standard | UL 758 |
| Color | Optional |
Product Description
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China.
Technical Specifications
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|
| 26 | 25/0.08 | 0.48 | 0.78 | 2.10±0.1 |
| 24 | 41/0.08 | 0.60 | 0.78 | 2.20±0.1 |
| 22 | 65/0.08 | 0.78 | 0.78 | 2.50±0.1 |
| 20 | 104/0.08 | 0.95 | 0.78 | 2.55±0.1 |
| 18 | 164/0.08 | 1.17 | 0.78 | 2.80±0.1 |
| 16 | 261/0.08 | 1.47 | 0.78 | 3.10±0.1 |
| 14 | 415/0.08 | 2.10 | 0.78 | 3.70±0.1 |
| 12 | 660/0.08 | 2.70 | 0.78 | 4.30±0.1 |
| 10 | 1050/0.08 | 3.40±0.30 | 1.15 | 5.50±0.2 |
| 2 | 6692/0.08 | 8.70±0.5 | 1.52 | 11.8±0.5 |
Contact Us to Get the Most Cost-effective Quote
Frequently Asked Questions
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, with production bases in Dongguan and Jingzhou.
- What Can We Provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
- Why Choose Us? Free samples, competitive pricing, high quality standards, and customized services.
- What Certifications Do We Have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
- What Services Can We Provide? Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
