1AWG UL3512 Silicone Wire 200C 600V Tinned Copper High Temp Cable
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Temperature rating | 200C | Wire shape | ROUND |
|---|---|---|---|
| AWG sizes | 1AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10AWG | Conductor material | Tinned Copper wire |
| Insulation material | Silicone Rubber | Rated voltage | 600V |
| Conductor type | tinned copper | Conductor construction | 8842/0.08 |
| Conductor diameter | 10.0±0.6mm | Insulation thickness | 2.03mm |
| Overall diameter | 14.0±0.6mm | Wire type | insulated |
| Strand count | 8842 | Strand diameter | 0.08mm |
| Color options | Optional | ||
| 강조하다 | 1AWG silicone high temp wire,UL3512 tinned copper cable,600V silicone insulated wire |
||
제품 설명

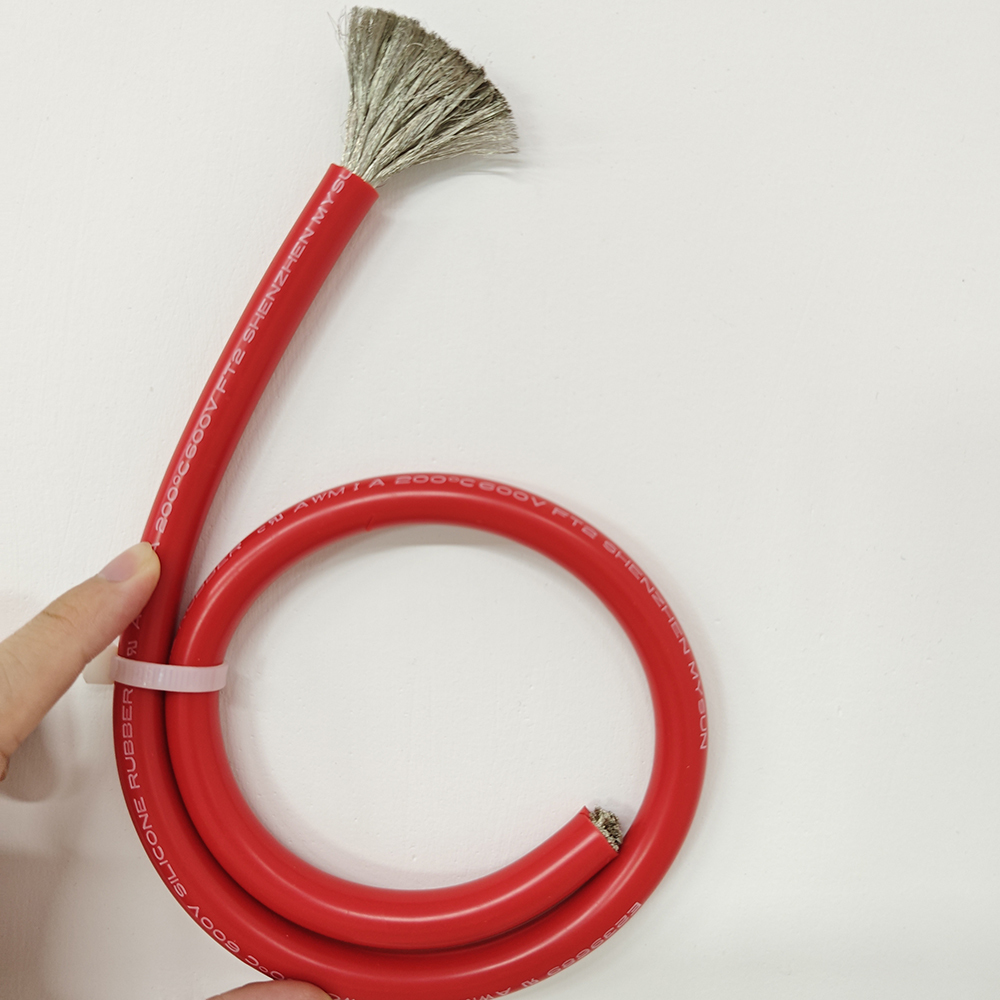

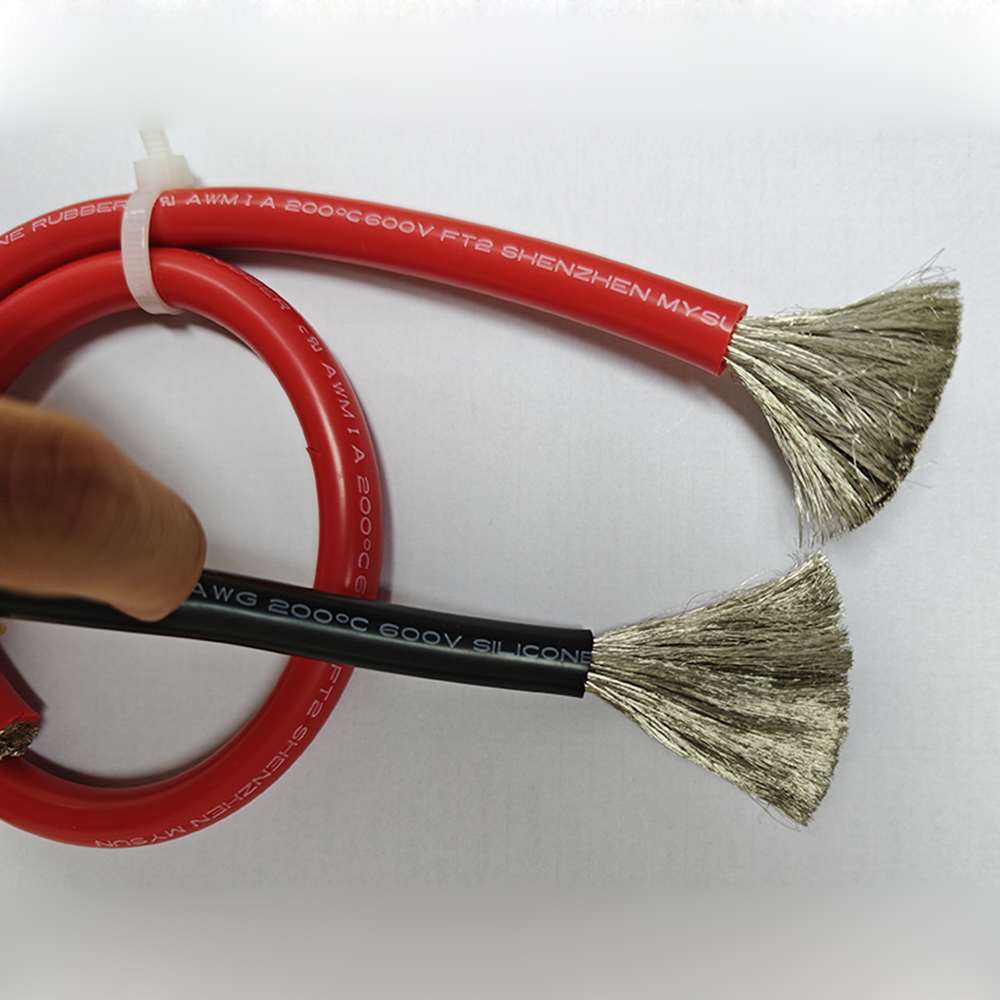

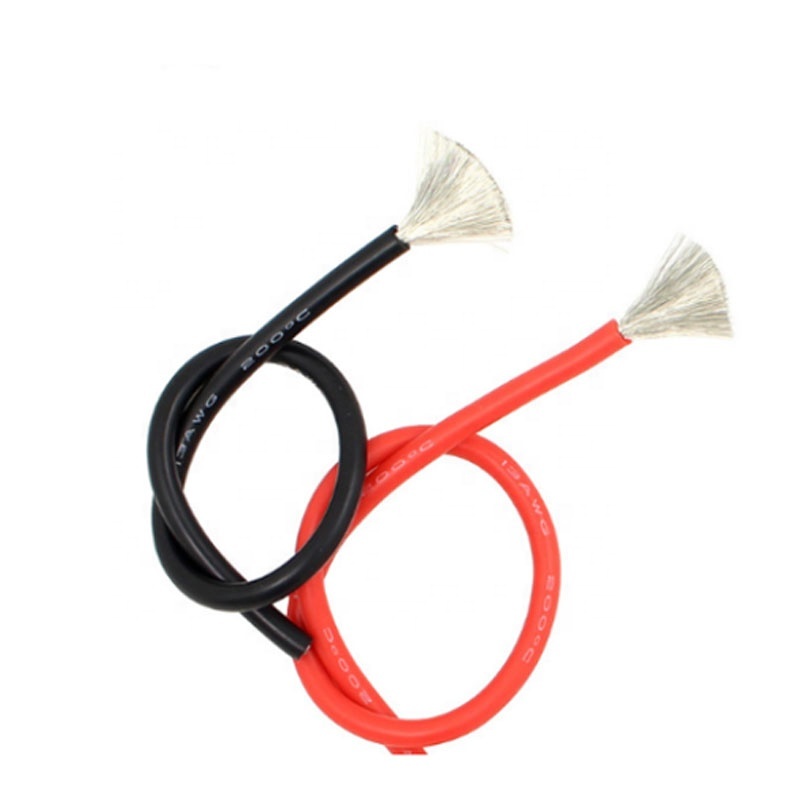

1AWG Super Soft Silicone Wire 8842/0.08 UL3512 200°C 600V Flexible Tinned Copper High Temperature Wires
Product Specifications
| Attribute | Value |
|---|---|
| Temperature Rating | 200°C |
| Shape | Round |
| Available Diameters | 1AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10AWG |
| Type | Insulated |
| Applications | Home appliances, lighting, heaters, motors & generators |
| Conductor Material | Tinned Copper wire |
| Insulation Material | Silicone Rubber |
| Rated Voltage | 600V |
| Standard | UL758 |
| Color Options | Customizable |
Premium Quality Silicone Rubber Wire
Supplying Fortune 500 companies, we are a top silicone rubber wire supplier in China with 26 years of manufacturing experience.
Technical Specifications (UL3512 - 0.08 Super Soft Silicone Wire)
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) |
|---|---|---|---|---|
| 26 | 25/0.08 | 0.48 | 0.78 | 2.10±0.1 |
| 24 | 41/0.08 | 0.60 | 0.78 | 2.20±0.1 |
| 22 | 65/0.08 | 0.78 | 0.78 | 2.50±0.1 |
| 20 | 104/0.08 | 0.95 | 0.78 | 2.55±0.1 |
| 18 | 164/0.08 | 1.17 | 0.78 | 2.80±0.1 |
| 16 | 261/0.08 | 1.47 | 0.78 | 3.10±0.1 |
| 14 | 415/0.08 | 2.10 | 0.78 | 3.70±0.1 |
| 12 | 660/0.08 | 2.70 | 0.78 | 4.30±0.1 |
| 10 | 1050/0.08 | 3.40±0.30 | 1.15 | 5.50±0.2 |
| 1 | 8842/0.08 | 10.0±0.6 | 2.03 | 14.0±0.6 |
Contact us today for the most cost-effective quote on high-temperature silicone wires.
Frequently Asked Questions
Who are we?
We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters is in Shenzhen, China with production bases in Dongguan and Jingzhou.
What can we provide?
We specialize in high-temperature wires and cables, including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cables, and wiring harnesses.
Why choose us?
- Free samples available
- Competitive pricing
- High quality standards
- Customized services
What certifications do we have?
UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
What services can we provide?
Accepted delivery terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted payment methods: T/T, L/C, PayPal, Western Union, Cash.
