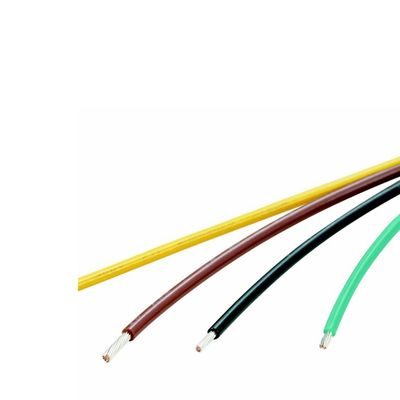

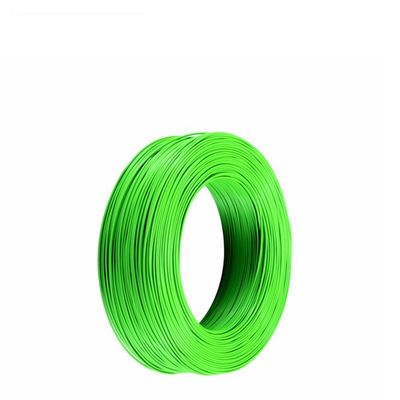

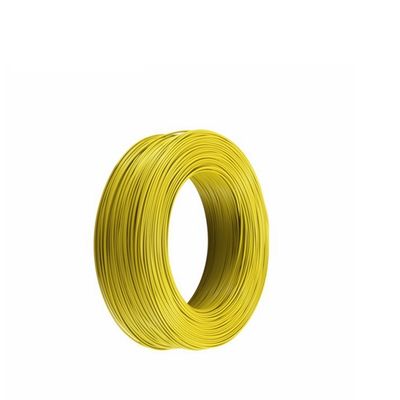

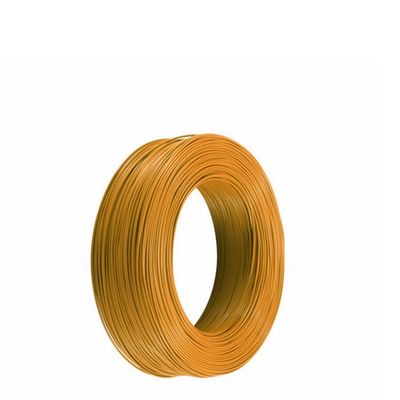

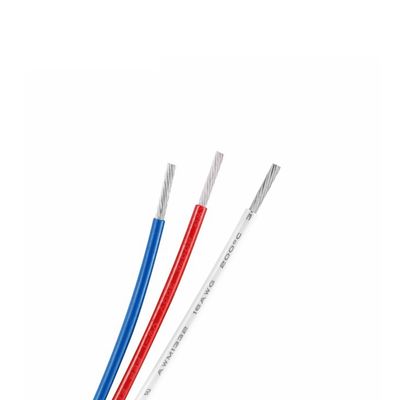

UL1901 FEP Wire 600V 200C High Temperature Wire for Industrial Robots and Drones
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 도체 재료 | 통조림 구리 | 지름 | 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 6AWG, 8AWG, 4AWG, 2AWG, 1AWG, 26AWG, 7AWG, 5 |
|---|---|---|---|
| 단열재 | 고무 | 정격전압 | 600 v |
| 도체 유형 | 단단한 | 모양 | 둥근 |
| 온도 등급 | 200℃ | 유형 | 절연 |
| 단위 길이 | 305/1000 | 절연 두께 | 0.350mm, 0.500mm, 0.760mm |
| 최대 도체 저항 | 381Ω/KM, 239Ω/KM, 150Ω/KM, 94.2Ω/KM, 59.4Ω/KM, 36.7Ω/KM, 23.2Ω/KM, 14.6Ω/KM, 8.96Ω/KM, 5.64Ω/KM, 3.5 | 지휘자 구조 | 7/0.10, 7/0.12, 7/0.16, 7/0.20, 19/0.15, 19/0.19, 19/0.235, 19/0.30, 19/0.37, 19/0.47, 19/0.43, 37/0 |
| 공칭 직경 | 0.30mm, 0.36mm, 0.48mm, 0.60mm, 0.75mm, 0.93mm, 1.17mm, 1.50mm, 1.85mm, 2.35mm, 3.00mm, 3.78mm, 4.20 | 절연 직경 | 1.00mm, 1.08mm, 1.18mm, 1.30mm, 1.45mm, 1.63mm, 1.87mm, 2.20mm, 2.55mm, 3.05mm, 3.70mm, 4.78mm, 5.20 |
| 강조하다 | UL1901 FEP Wire,600V High Temperature Wire,200C Robot Cable |
||
제품 설명
UL1901 FEP Wire AWG 600V 200°C High Temperature Wire for Robot Cable
Supplies Fortune 500 Companies - Top PFA Wire Supplier In China.
Specification
| UL1901 | Conductor | Insulation | Max. Cond Resistance (Ω/KM) | Unit length (M)(Ft) | ||
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No.mm) | Diameter (mm) | Nominal thickness (mm) | Diameter (mm) | ||
| 30 | 7/0.10 | 0.30 | 0.350 | 1.00 | 381 | 610/2000 |
| 28 | 7/0.12 | 0.36 | 0.350 | 1.08 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.350 | 1.18 | 150 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 0.350 | 1.30 | 94.2 | 610/2000 |
| 22 | 19/0.15 | 0.75 | 0.350 | 1.45 | 59.4 | 305/1000 |
| 20 | 19/0.19 | 0.93 | 0.350 | 1.63 | 36.7 | 305/1000 |
| 18 | 19/0.235 | 1.17 | 0.350 | 1.87 | 23.2 | 305/1000 |
| 16 | 19/0.30 | 1.50 | 0.350 | 2.20 | 14.6 | 305/1000 |
| 14 | 19/0.37 | 1.85 | 0.350 | 2.55 | 8.96 | 305/1000 |
| 12 | 19/0.47 | 2.35 | 0.350 | 3.05 | 5.64 | 305/1000 |
| 10 | 19/0.43 | 3.00 | 0.350 | 3.70 | 3.55 | 305/1000 |
| 8 | 37/0.54 | 3.78 | 0.500 | 4.78 | 2.23 | Customize |
| 7 | 37/0.60 | 4.20 | 0.500 | 5.20 | 1.77 | Customize |
| 6 | 37/0.68 | 4.76 | 0.500 | 5.76 | 1.41 | Customize |
| 5 | 37/0.76 | 5.32 | 0.500 | 6.32 | 1.12 | Customize |
| 4 | 37/0.86 | 6.02 | 0.500 | 7.02 | 0.89 | Customize |
| 3 | 7/2.21 | 6.63 | 0.500 | 7.63 | 0.71 | Customize |
| 2 | 7/2.48 | 7.44 | 0.500 | 8.44 | 0.56 | Customize |
| 1 | 7/2.78 | 8.34 | 0.760 | 9.86 | 0.4268 | Customize |
| 0 | 7/3.20 | 9.60 | 0.760 | 11.12 | 0.3367 | Customize |
| 2/0 | 7/3.57 | 10.71 | 0.760 | 12.23 | 0.267 | Customize |
| 3/0 | 7/3.94 | 11.82 | 0.760 | 13.34 | 0.2119 | Customize |
| 4/0 | 7/4.42 | 13.26 | 0.760 | 14.78 | 0.168 | Customize |
Company Profile
Our Products
Application
Our Overseas Clients
Exhibition
Certifications
FAQ
- Who Are We? We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
- What Can We Provide? We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
- Why Choose Us? A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
- What Certifications Do We Have? We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
- What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
