Heat-Resistant UL3122 Silicone Insulated Copper Wire with 200C Rated Temperature and 300V Voltage for Home Appliances in 305 Meter Rolls
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 도체 자료 | 구리 | 단열재 | 고무 |
|---|---|---|---|
| 정격 전압 | 300 v | 지휘자 유형 | 좌초 |
| 모양 | 둥근 | 온도 등급 | 200c |
| 지휘자 구성 | 통조림 구리 | 절연 유형 | 실리콘 고무 |
| 패키지 길이 | 305 미터 / 명부 | 최대 도체 저항 | 143.00 Ω/km |
| 도체 직경 | 0.48 밀리미터 | 절연 두께 | 0.60 밀리미터 |
| 절연 직경 | 1.68 mm | 단위 길이 | 305/1000 m/ft |
| AWG 크기 | 26 | ||
| 강조하다 | 200C Rated Temperature Silicone Insulated Wire,300V Rated Voltage Copper Wire,305 Meter/Roll Package UL3122 Wire |
||
제품 설명

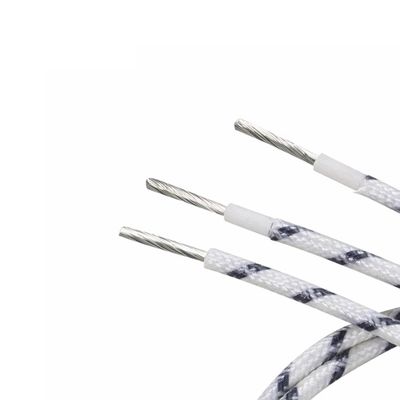

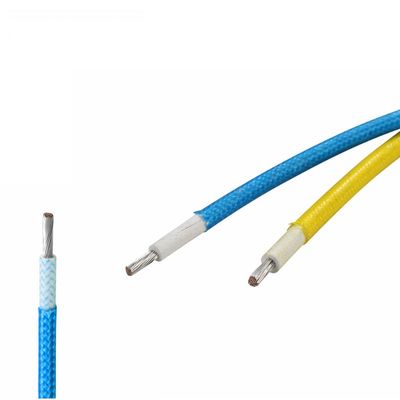

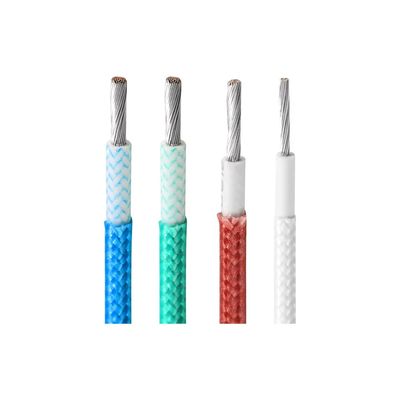

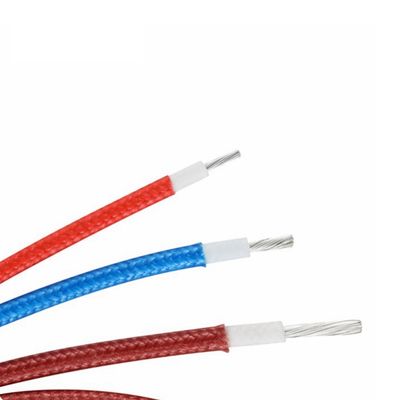

Heat-Resistant Wire UL3122 Silicone Glass Fiber Braided Copper Wire for Home Appliance
Product Description
Specifications
| Conductor | Insulation | Max. Cond. Resistance (Ω/KM) | Unit length (M)(Ft) | |||
|---|---|---|---|---|---|---|
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 26 | 7/0.16 | 0.48 | 0.60 | 1.68 | 143.00 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.60 | 1.81 | 89.30 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.60 | 1.97 | 56.40 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.60 | 2.14 | 35.20 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.60 | 2.39 | 22.20 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.60 | 2.69 | 14.00 | 305/1000 |
| 24 | 1/0.50 | 0.5 | 0.65 | 1.80 | 89.30 | 305/1000 |
| 22 | 1/0.65 | 0.65 | 0.65 | 1.95 | 56.40 | 305/1000 |
| 20 | 1/0.81 | 0.81 | 0.65 | 2.11 | 35.20 | 305/1000 |
| 18 | 1/1.02 | 1.02 | 0.65 | 2.32 | 22.20 | 305/1000 |
| 16 | 1/1.20 | 1.2 | 0.65 | 2.50 | 14.00 | 305/1000 |
| 24 | 11/0.16 | 0.61 | 0.60 | 1.81 | 89.30 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.60 | 1.96 | 56.40 | 305/1000 |
| 20 | 26/0.16 | 0.94 | 0.60 | 2.14 | 35.20 | 305/1000 |
| 18 | 41/0.16 | 1.18 | 0.60 | 2.38 | 22.20 | 305/1000 |
| 16 | 26/0.254 | 1.49 | 0.60 | 2.69 | 14.00 | 305/1000 |
| 0.30m㎡ | 12/0.18 | 0.71 | 0.60 | 1.91 | 59.78 | 305/1000 |
| 0.50m㎡ | 20/0.18 | 0.92 | 0.60 | 2.12 | 40.10 | 305/1000 |
| 0.75m㎡ | 30/0.18 | 1.13 | 0.60 | 2.33 | 26.70 | 305/1000 |
| 1.00m㎡ | 40/0.18 | 1.31 | 0.60 | 2.51 | 20.00 | 305/1000 |
| 1.25m㎡ | 50/0.18 | 1.46 | 0.60 | 2.66 | 14.35 | 305/1000 |
Product Features
- Place of Origin: China, Guangdong
- Type: Insulated wire
- Application: Home appliance, lighting, heater, motor, generator, industrial power
- Conductor Material: Copper (tinned)
- Conductor Type: Stranded
- Insulation Material: Silicone Rubber
- Color: Customizable
- Usage: High temperature electric furnace heating
- Rated Voltage: 300V
- Rated Temperature: 200°C
- Package: 305 meter/roll
- Certification: ROHS, CCC, VDE, ISO9001:2008
Company Profile
Shenzhen Mysun Insulation Materials Co., Ltd. is a comprehensive enterprise integrating manufacture, distribution and trade. We specialize in producing high temperature wires for home appliances, electronic products, lighting, medical units, communication and office equipment with connecting wiring harness and processing service. Our wires have passed UL, CUL, VDE and SGS certifications. Our company operates under ISO9001 international standard management system. We adhere to the principles of "group, service, innovation and responsibility" with a quality policy of "full participation, prevention first, persisting improvement and satisfying service".

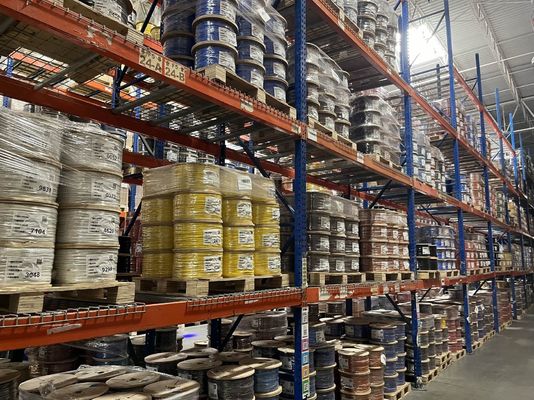

Packing
Application
Frequently Asked Questions
How can I contact your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We have public holidays during May 1-3, October 1-7 and Chinese New Year. Please email us during holidays with any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing. The buyer should bear all shipping costs.
What are your payment terms?
T/T, L/C, D/A, D/P, Western Union, MoneyGram, Paypal
What is the lead time?
Sample lead time is typically 7 days after payment confirmation.
