UL3122 Silicone Insulated Wire 300V 200C High Temperature 18 AWG for Home Appliance and Industrial Use
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 도체 자료 | 구리 | 단열재 | 실리콘 고무 |
|---|---|---|---|
| 정격 전압 | 300 v | 지휘자 유형 | 좌초 |
| 모양 | 둥근 | 최대 온도 | 200c |
| 도체 직경 | 0.48-1.49 mm | 절연 두께 | 0.60-0.65 mm |
| 와이어 직경 | 1.68-2.69 mm | 도체 저항 | 14.00-143.00 Ω/km |
| 단위 길이 | 305 미터 / 명부 | AWG 크기 | 16-26 |
| 지휘자 구조 | 7/0.16 ~ 50/0.18 | 지휘자 마감 | 통조림 구리 |
| 절연 유형 | 고무 | ||
| 강조하다 | 300V Silicone Insulated Wire,200C High Temperature Wire,18 AWG Silicone Rubber Insulated Wire |
||
제품 설명

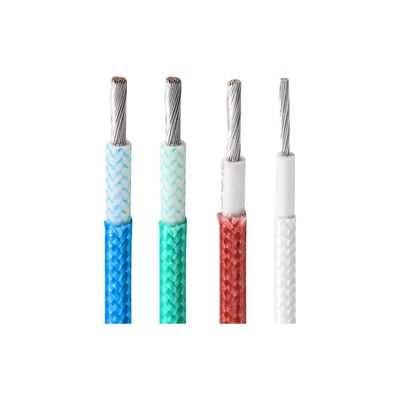

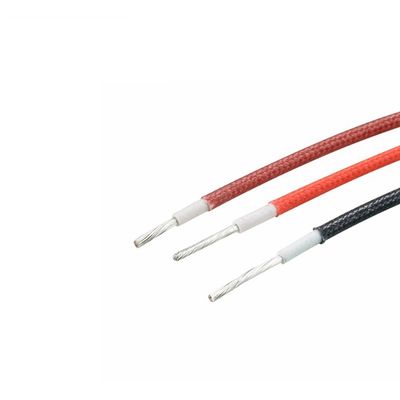

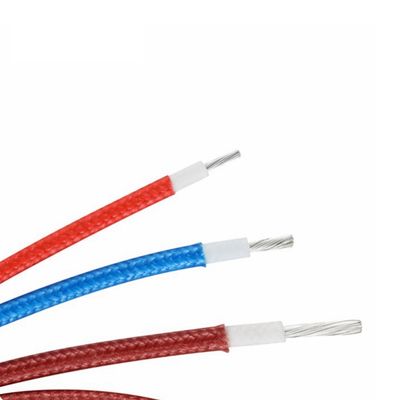

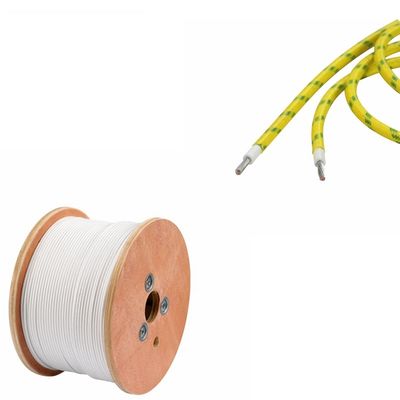

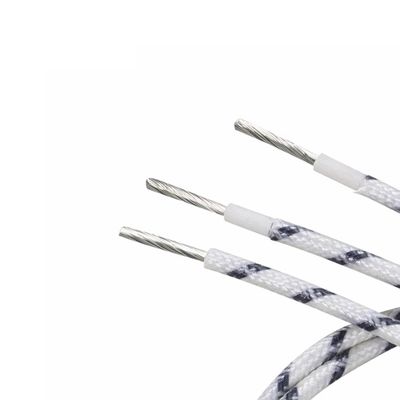

UL3122 Silicone Fiberglass Braided Wire 300V 18 AWG 20 AWG High Temperature Heating Cables
High-quality silicone fiberglass braided wire designed for home appliances and industrial applications requiring high temperature resistance up to 200°C.
Specifications
| Conductor | Insulation | Max. Cond. Resistance (Ω/KM) | Unit Length (M)(Ft) |
|---|---|---|---|
| Size (AWG): 26 Construction: 7/0.16 Diameter: 0.48mm |
Nominal Thickness: 0.60mm Diameter: 1.68mm |
143.00 | 305/1000 |
| Size (AWG): 24 Construction: 7/0.20 Diameter: 0.61mm |
Nominal Thickness: 0.60mm Diameter: 1.81mm |
89.30 | 305/1000 |
| Size (AWG): 22 Construction: 7/0.254 Diameter: 0.77mm |
Nominal Thickness: 0.60mm Diameter: 1.97mm |
56.40 | 305/1000 |
| Size (AWG): 20 Construction: 7/0.31 Diameter: 0.94mm |
Nominal Thickness: 0.60mm Diameter: 2.14mm |
35.20 | 305/1000 |
| Size (AWG): 18 Construction: 7/0.39 Diameter: 1.19mm |
Nominal Thickness: 0.60mm Diameter: 2.39mm |
22.20 | 305/1000 |
Product Features
- Place of Origin: China, Guangdong
- Type: Insulated wire with silicone rubber insulation
- Application: Home appliances, lighting, heaters, motors, generators, industrial power
- Conductor Material: Tinned copper (stranded)
- Color options: Accept customized colors
- Usage: High temperature electric furnace heating
- Rated Voltage: 300V
- Rated Temperature: 200°C
- Package: 305 meter/roll
- Certification: ROHS, CCC, VDE, ISO9001:2008
Company Profile
Shenzhen Mysun Insulation Materials Co., Ltd. is a comprehensive enterprise specializing in high temperature wires for home appliances, electronic products, lighting, medical units, and communication equipment. Our products meet UL, CUL, VDE and SGS certifications and comply with ISO9001 international standards.
Packing
Applications
Frequently Asked Questions
How can I contact your company?
We are available via Email, Telephone, Fax, Skype, Whatsapp or Mobile.
What is your working time?
Monday-Saturday: 7:30AM-17:00PM (Beijing time, GMT+08.00). We observe public holidays during May 1-3, October 1-7, and Chinese New Year.
Do you provide free samples?
Yes, we provide free samples for testing, but buyers must cover all shipping costs.
What are your payment terms?
We accept T/T, L/C, D/A, D/P, Western Union, MoneyGram, and Paypal.
What is the lead time?
Sample lead time is typically 7 days after payment confirmation.
