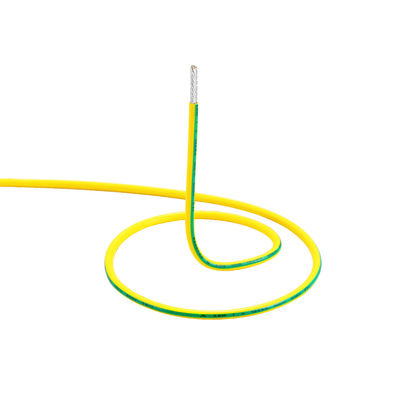

Multi Colors PVC Insulated Copper Wire Pure Copper Conductor UL Certificated UL1015
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x정량 전압 | 600V | 이름 온도 | 105C |
---|---|---|---|
단열재 | PVC | 지휘자 | 순수 구리 또는 주석 도금 구리 |
표준 | UL758 UL1581 | 저항력 | UV 저항 |
화염 등급 | 100% VW-1 및 FT-1 테스트 | ROHS | 100% 통과 |
한계 | 100% 통과 | ||
하이 라이트 | UL1015 PVC Insulated Copper Wire,UL Certificated PVC Insulated Copper Wire,Multi Colors PVC Insulated Copper Wire |
UL1015 pvc insulated copper wire
Specifications:
Nominal voltage: 600V
Temperature range: 105C
Standard: UL 758
Conductor: Tinned copper
Insulation: PVC
Product dimensions:
Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Nominal Thickness (mm) |
Diameter (mm) |
||
30 | 7/0.10 | 0.30 | 0.80 | 1.90 | 347 | 305/1000 |
28 | 7/0.127 | 0.38 | 1.98 | 218 | ||
26 | 7/0.16 | 0.48 | 2.08 | 138 | ||
24 | 11/0.16 | 0.61 | 2.21 | 85.9 | ||
22 | 17/0.16 | 0.76 | 2.36 | 54.3 | ||
20 | 21/0.18 | 0.95 | 2.55 | 33.9 | ||
18 | 34/0.18 | 1.21 | 2.81 | 21.4 | ||
16 | 26/0.254 | 1.50 | 3.10 | 13.5 | ||
14 | 41/0.254 | 1.89 | 3.49 | 8.45 | ||
12 | 65/0.254 | 2.37 | 3.97 | 5.31 | ||
10 | 105/0.254 | 3.02 | 4.62 | 3.343 | ||
9 | 133/0.254 | 3.39 | 4.99 | 2.652 | ||
8 | 133/0.280 | 3.75 | 1.15 | 6.05 | 2.102 | |
6 | 84/0.45 | 4.79 | 1.53 | 7.85 | 1.323 | |
4 | 133/0.45 | 6.02 | 9.08 | 0.8315 | ||
2 | 212/0.45 | 7.60 | 10.66 | 0.5231 |
Application:
1. Headlamp
2. Home appliance
3. Special construction
4. Multimedia Network
FAQ:
1. Are you a manufacturer?
A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are Silicone wire, Fiberglass braided wires. wires ,xlpe wires, pvc wires and Mica wires Wire Harnesses.
3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
4. Is the quality of your products guaranteed?
A:Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment,
and our workers are highly experienced . We strictly follow the international standards and customers' requirements.
